WELDING MANIPULATORS
|
Model |
Description |
|
M4-MB-LD |
4X4 Mounted on 36” x 36” cart with power lift & manual boom travel |
|
|
Power cart for above (ADD) |
|
M4-PB-LD |
4X4 Mounted on 36” x 36” cart with power lift & SCR power boom travel |
|
|
Power cart for above (ADD) |
|
M6-MB-LD |
6X6 Mounted on 48” x 48” cart with power lift & manual boom travel |
|
|
Power cart for above (ADD) |
|
M6-PB-LD |
6 X 6 Mounted on 48” X 48” cart with power lift & SCR boom control |
|
|
Power cart for above (ADD) |

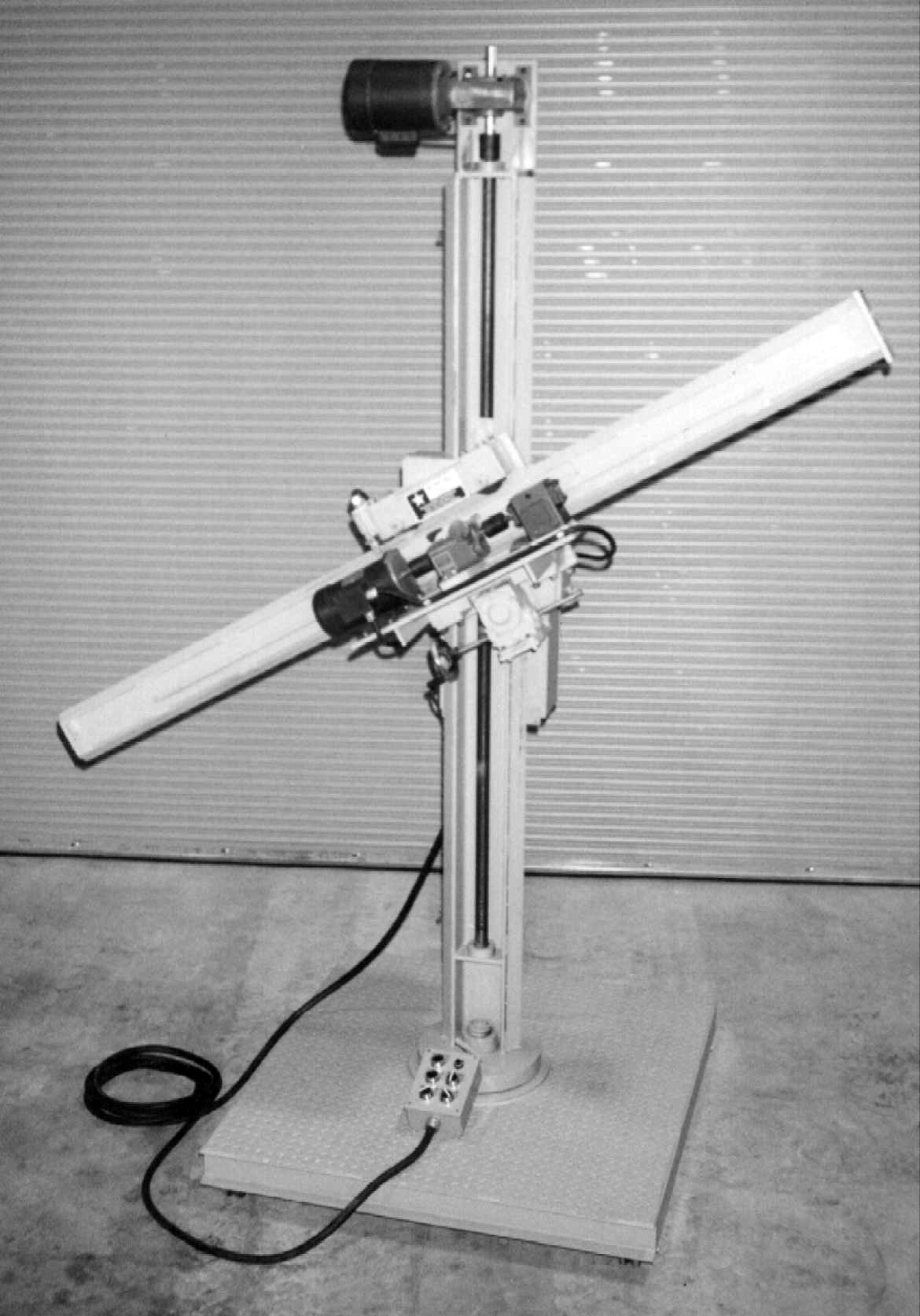

M-6-PB-LD with gear driven angle rotation on boom. Also has transmission drive on variable speed boom to facilitate extra slow movement (1/4” per min) for cladding ID work.
|
Model |
Description |
|
M8-PB-MD |
8X8 Bolt down base with power lift & SCR boom |
|
|
Free standing base (ADD) |
|
M9-PB-MD |
9X9 Bolt down base with power lift & SCR boom |
|
|
Free standing base (ADD) |
|
M10-PB-MD |
10X10 Bolt down base with power lift & SCR boom |
|
|
Free standing base (ADD) |
|
M12-PB-MD |
12X12 Bolt down base with power lift & SCR boom |
|
|
Free standing base (ADD) |
|
|
Integrated base system – cart – approx. 42” wide |
|
|
Track – per 20’ |
Track systems for Power Rolls, Positioners and Manipulators quoted per customer request. Consult factory for pricing. See separate bulletin for Crossfeed Slides for Manipulators

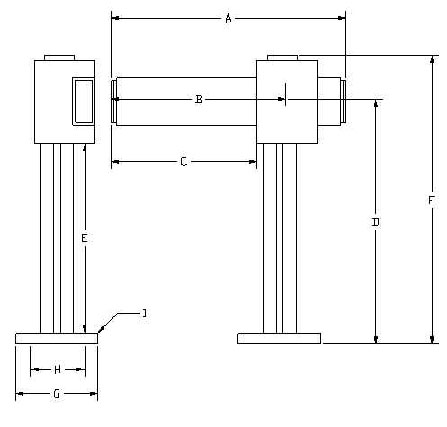

Medium Duty WELDING MANIPULATORS
|
Model MD |
8x8 |
9x9 |
10x10 |
12x12 |
|
A-Boom Length |
131” |
143” |
155” |
179” |
|
B-Reach Range |
18-114” |
18-126” |
18-138” |
18-162” |
|
C-Reach |
96” |
108” |
120” |
144” |
|
D-Lift Range |
28-128” |
28-140” |
28-152” |
28-176” |
|
E-Lift |
96” |
108” |
120” |
144” |
|
F-Mast Length |
144” |
156” |
168” |
192” |
|
G-Base OD |
24” |
24” |
24” |
24” |
|
H-Bolt Circle |
22” |
22” |
22” |
22” |
|
I-Bolt Holes |
7/8” 8 |
7/8” 8 |
7/8” 8 |
7/8” 8 |
Special sizes available upon request

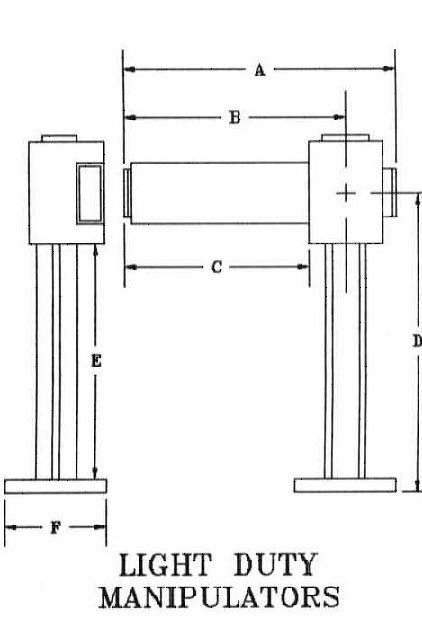

Light Duty WELDING MANIPULATORS
|
Load Capacity |
LD 4 X 4 |
LD 6 X 6 |
|
A – Boom Length |
72.5” |
96” |
|
B- Boom Travel |
48.0” |
72” |
|
C – Reach |
60.0” |
84” |
|
D – Lift |
48.0” |
72” |
|
E – Mast Length |
72.5” |
96” |
|
F – Base OD |
12.0” |
16.0” |
Special sizes available an quoted upon request
WELDING MANIPULATORS

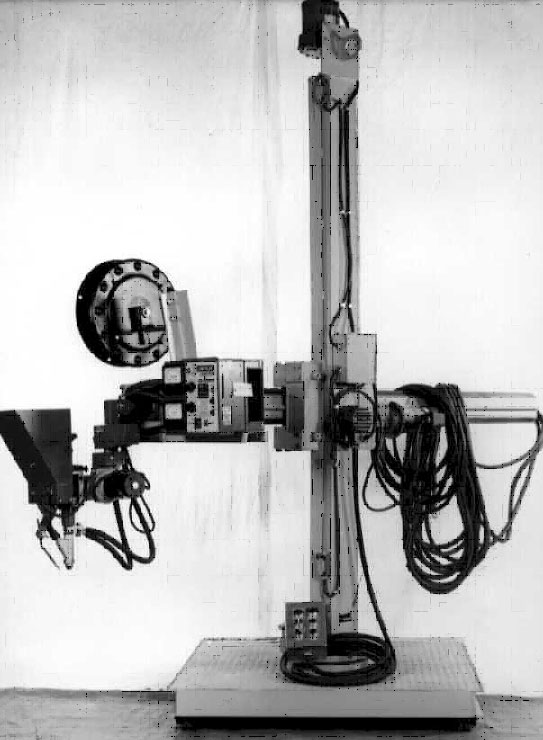

BEC M6-PB-LD
Ø Very versatile, designed for operator’s convenience.
Ø All welded construction
Ø 360 degree mast rotation
Ø Manual or Constant speed AC or SCR drive
Ø Track systems for all manipulators are quoted per customer requirements.
RANGE - 70” of effective vertical lift and 72” of effective horizontal arc travel.
MAST – Fabricated box structure of 6” ship channel and 6” standard channel with 2” X 2” angle welded to each flange for strength and rigidity.
Vertical Lift – Powered by ½ HP AC gear motor with a screw driving system. 7 IPM lift speed.
Boom (Ram) – Fabricated from 4” X 2” X .188 wall mechanical tubing with 1 ½” X 1 ½” X ¼” angle way to insure proper alignment and strength. Manufactured with eccentric cam rollers to provide exact and easy adjustment for longitudinal welding as well as precise adjustment for wear and deflection of the boom and mast assemblies.
Boom Drive – Consists of a rack and gear drive, manual or powered by a ½ HP, DC electrical motor with SCR electronic drive.
Mast Rotation – Manual on 48” X 48” cart with v-groove wheels. Mounted on large diameter bearing plate with ball bearing base and sealed Timken bearing on shaft.
Electrical – 115V, Single Phase, 60 Cycle
